25mm Clip Spacer

Get green building certificate

Legoplast Clip Spacers are comprised of 80% post-consumer recycled content by weight. Additionally, the product itself is 100% recyclable.

Legoplast Plastic Manufacturing uses mechanically recycled Polypropylene (PP) in its product manufacturing. This material significantly reduces the carbon footprint compared to virgin polypropylene. Studies indicate that this process can cut greenhouse gas emissions by up to 80%, primarily by eliminating the energy-intensive production associated with virgin plastic.

The adoption of recycled polypropylene promotes sustainable manufacturing practices within the construction industry. Unlike traditional materials such as concrete, which have a high carbon footprint due to cement production, Legoplast's heavy-duty 4-in-1 plastic spacers offer an environmentally friendly alternative. Construction companies in the UAE and GCC contributes to reducing their projects' environmental impact by using Legoplast spacers instead of the commonly used concrete cover blocks.

PDF    Environmental Product Declaration

Point Load Simulation

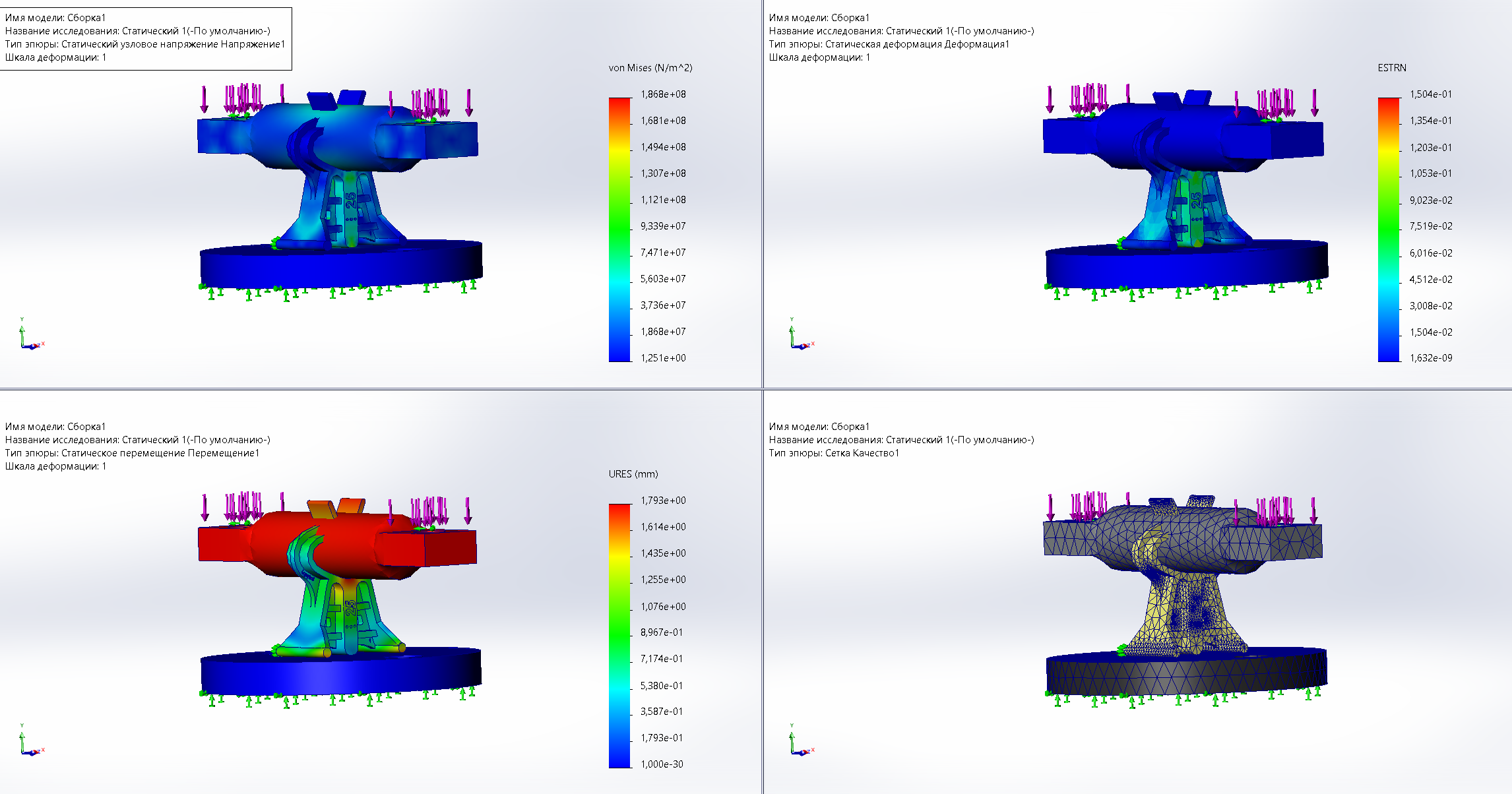

During the R&D process, the Legoplast team simulated a point load using a virtual test bench. The visualization below illustrates a 210 kg load test applied by a steel rebar to the Clip Spacer. The colors in the visualization represent the effects on the Clip Spacer under this load. On the right side of each image, you’ll find a scale with corresponding values and colors. The slides are labeled as follows (from left to right, top to bottom):

• Stress
• Deformation
• Displacement
• Grid of the Clip Spacer virtual model, which demonstrates the accuracy of the simulation.

No wires needed, save installation time

Clip Spacers install quickly and easily, eliminating the need for labor-intensive wire ties to secure them to the rebar. Legoplast heavy duty Clip Spacers support and stabilize the rebar mats and allow for quick rebar grid setup time. Our product is designed to simplify your construction projects and ensure the longevity of your reinforced concrete structures.

Installation recommendations

Legoplast recommends using two (2) to 4 (four) plastic rebar Clip Spacers per square meter of rebar mesh for optimal structural integrity

Standard Installation Pattern: For standard applications, a spacing pattern of 100 centimeters by 100 centimeters (100cm x 100cm) is recommended for even distribution of the spacers throughout the rebar mesh.

PDF    Installation guide

Designed in compliance with CRSI Manual of Standard Practice (30th edition)

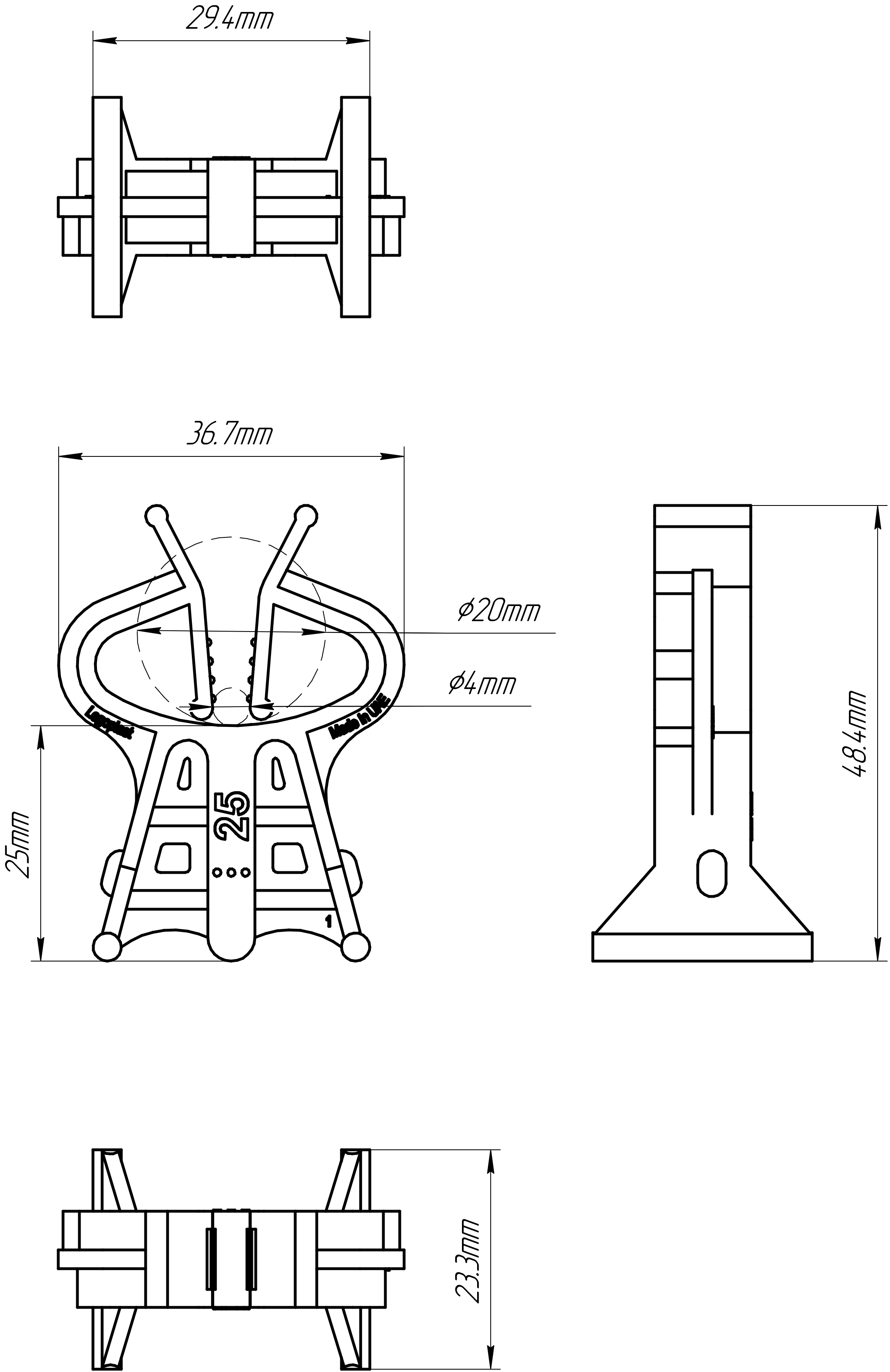

PDF    Design drawings for 25mm spacer

Made in UAE for GCC market

Legoplast Plastic Manufacturing's facilities are situated in the Jabal Ali Industrial First area of Dubai, United Arab Emirates.

At Legoplast Plastic Manufacturing, we utilize the injection molding process to create plastic rebar spacers from recycled raw materials. This efficient process involves melting plastic pellets and injecting them into molds, resulting in high-quality parts. Notably, our zero-waste approach ensures that scrapped items and raw material offcuts are shredded and reused as recycled materials.
