5 mm Shim Pad

Heavy-duty 5 mm leveling shim pad engineered for medium height correction and stable bearing under higher imposed loads in structural and architectural applications. Produced from recycled polypropylene, the 70×70×5 mm pad provides a rigid, non-corroding support solution for concrete units, stone, precast elements and equipment bases.


ICV Sertificate
35% In-Country Value


Produeced in Dubai
For GCC
  • Product Name: SH5
  • Product Type: Square Leveling Shim Pad

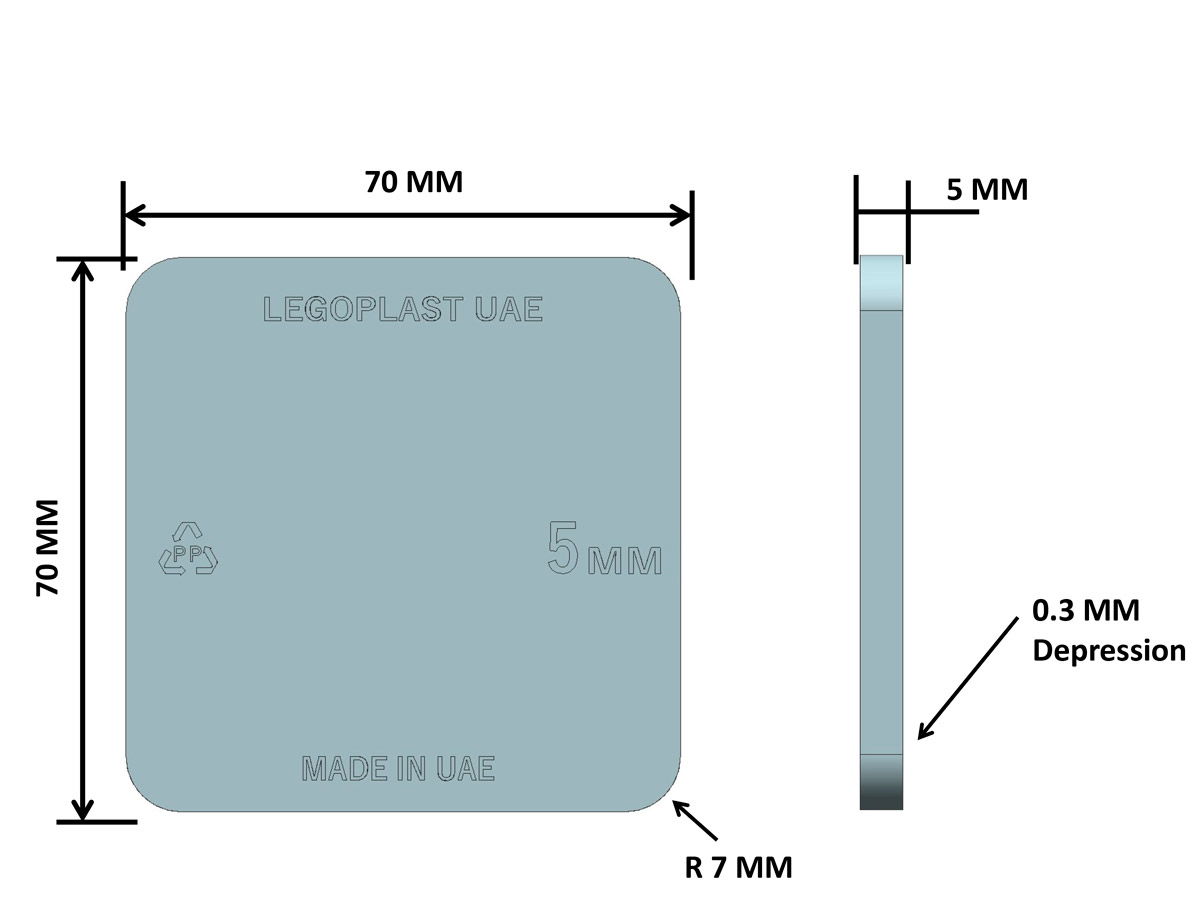

  • PRODUCT DIMENSION ( H x W x D ): 70 x 70 x 5 mm
  • Product Weight: 21 grams
  • Maximum Load Bearing: 826 kN
  • Material: 100% Recycled Polypropylene (PP)
  • Color: Black

  • 100% post-consumer recycled content by product weight

  • PRICE: 0.19 AED / piece

    Price is negotiable based on order quantity and payment terms


  • Technical Data Sheet: Download PDF
  • Load Test Report: Download PDF
  • Design drawings for SH5: Download PDF
  • Pre-Qualification File: Download PDF

Get green building certificate

Legoplast Pile Cage spacers are comprised of 100% post-consumer recycled content by weight. Additionally, the product itself is 100% recyclable.





Legoplast Plastic Manufacturing uses mechanically recycled Polypropylene (PP) in its product manufacturing. This material significantly reduces the carbon footprint compared to virgin polypropylene. Studies indicate that this process can cut greenhouse gas emissions by up to 80%, primarily by eliminating the energy-intensive production associated with virgin plastic.



The adoption of recycled polypropylene promotes sustainable manufacturing practices within the construction industry. Unlike traditional materials such as concrete, which have a high carbon footprint due to cement production, Legoplast's heavy-duty 4-in-1 plastic spacers offer an environmentally friendly alternative. Construction companies in the UAE and GCC contributes to reducing their projects' environmental impact by using Legoplast spacers instead of the commonly used concrete cover blocks.





Designed in compliance with best industry standards and practices








PDF    Design drawings for 5 mm Shim Pad

Made in UAE for GCC market

Legoplast Plastic Manufacturing's facilities are situated in the Jabal Ali Industrial First area of Dubai, United Arab Emirates.


At Legoplast Plastic Manufacturing, we utilize the injection molding process to create plastic rebar spacers from recycled raw materials. This efficient process involves melting plastic pellets and injecting them into molds, resulting in high-quality parts. Notably, our zero-waste approach ensures that scrapped items and raw material offcuts are shredded and reused as recycled materials.
